Kerf Edge Pull
Kerf Edge Pull
Regular price
$12.00 CAD
Regular price
Sale price
$12.00 CAD
Shipping calculated at checkout.
Couldn't load pickup availability
The Kerf Edge Pull is a slim aluminium profile that runs along the top edge of a door or drawer front. A small rounded lip gives your fingers something to catch, and nothing sticks out from the face of the cabinet.

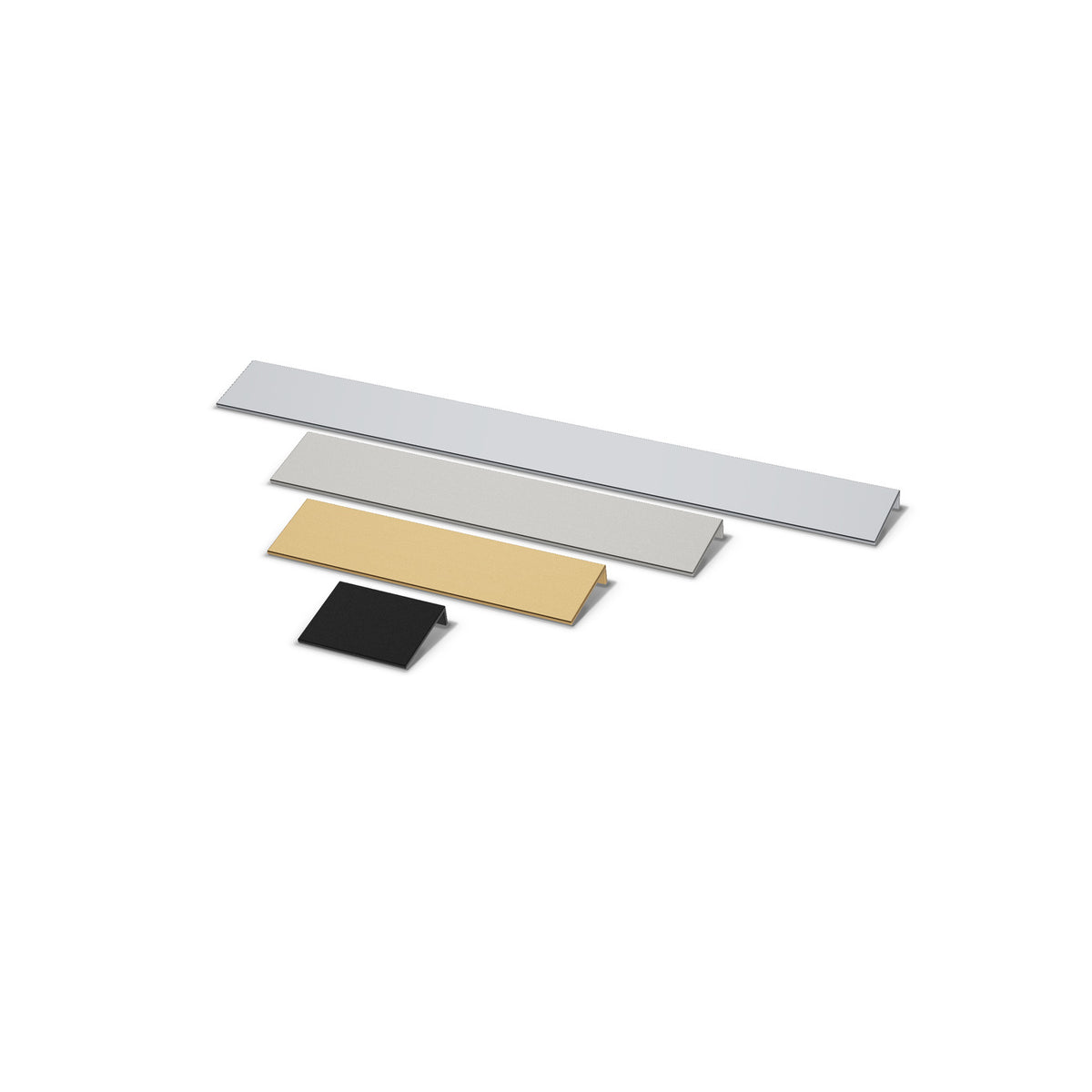

Size chart
| Size (overall length) | Hole spacing | Profile (height x depth) | Good for |
|---|---|---|---|

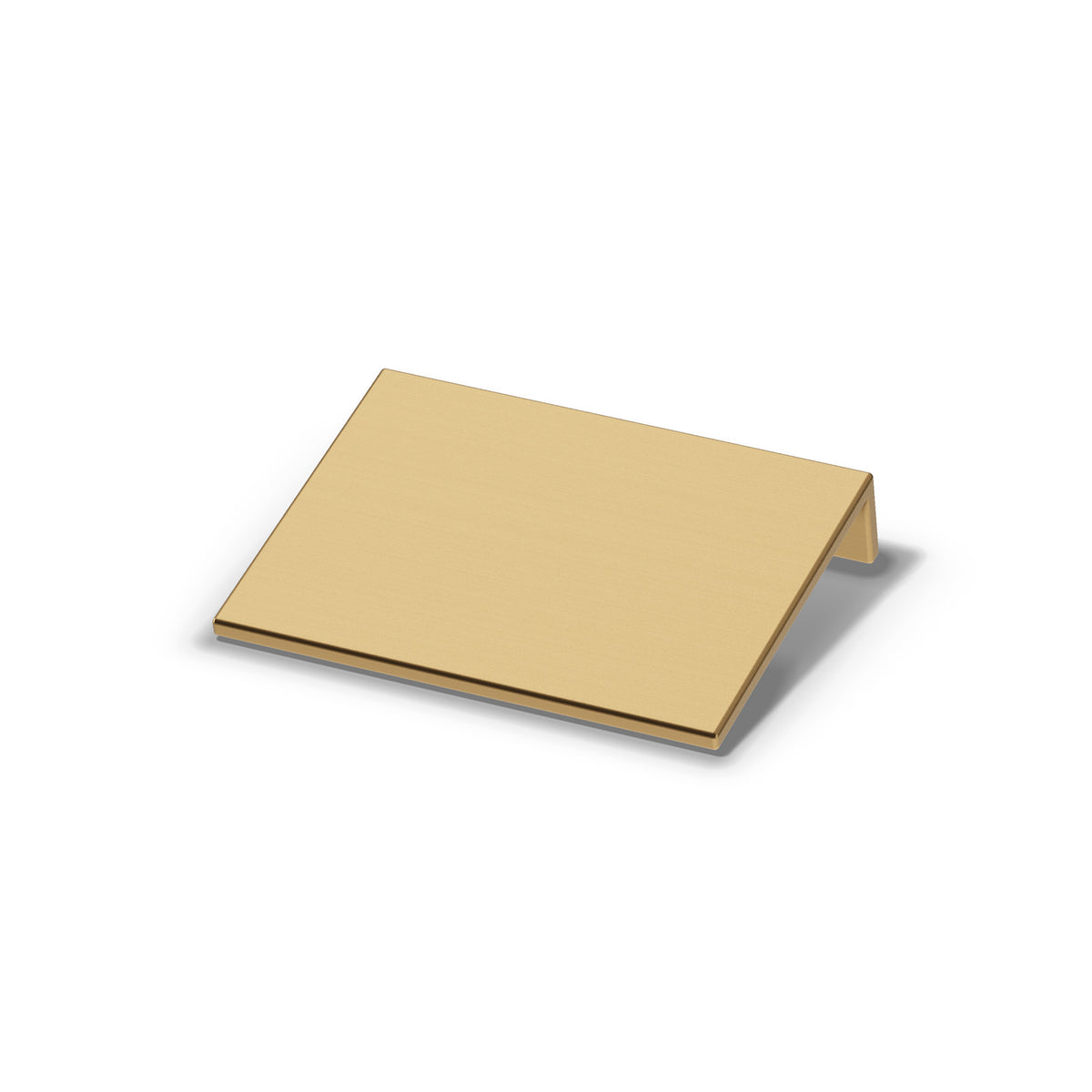

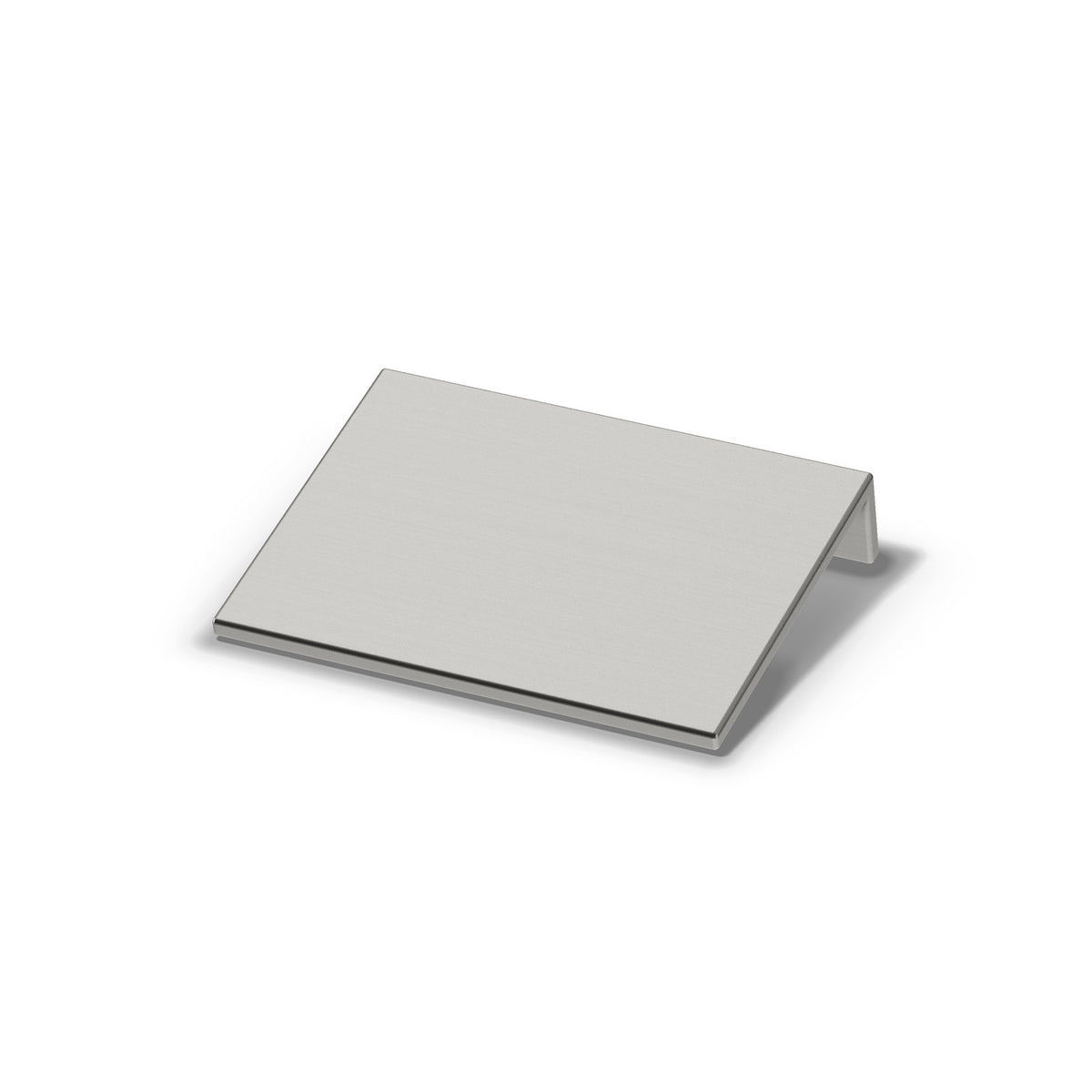

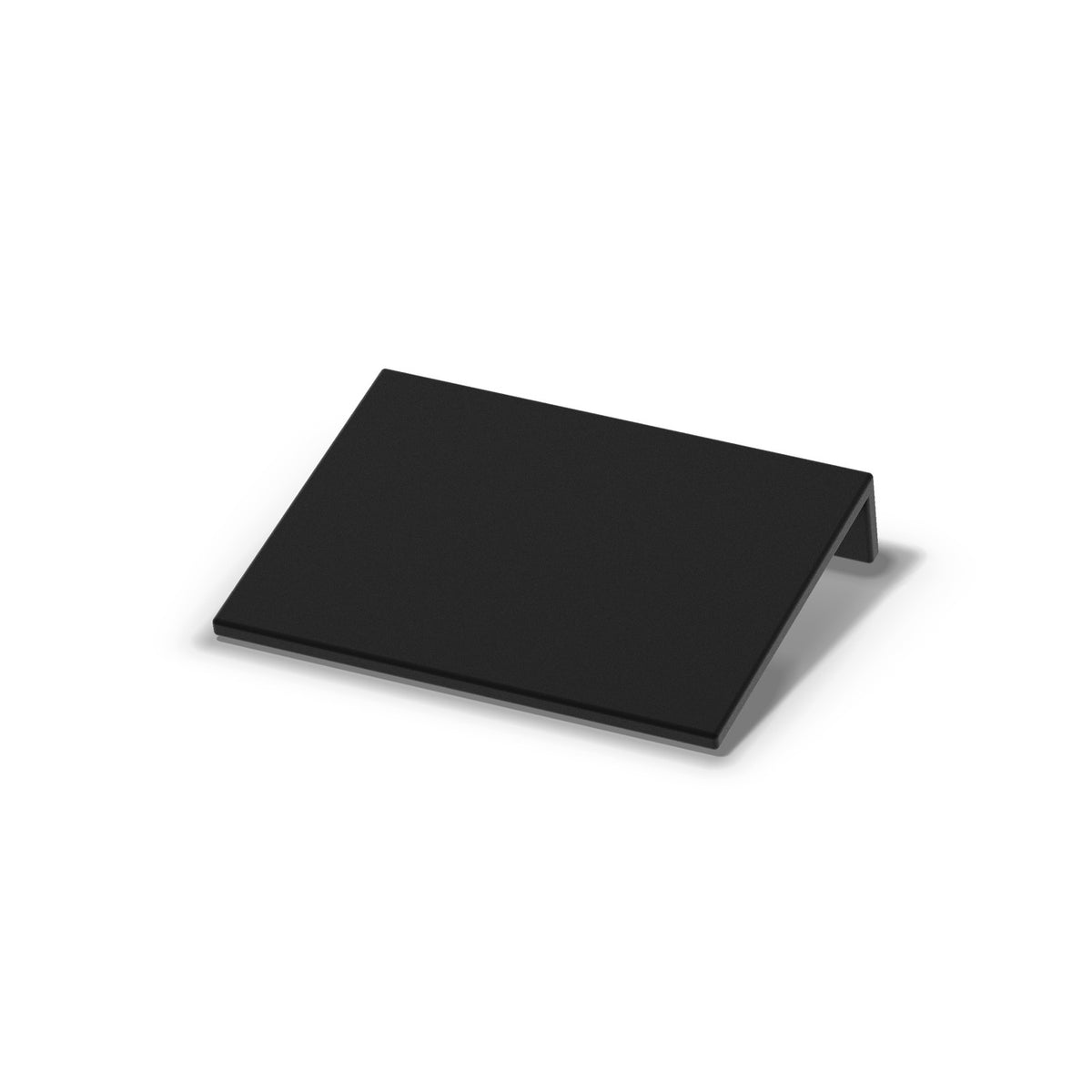

| 82mm (3.23 in) | 32mm (1.26 in) | 24.5 x 41.6mm (0.96 x 1.64 in) | Small drawers, inserts |

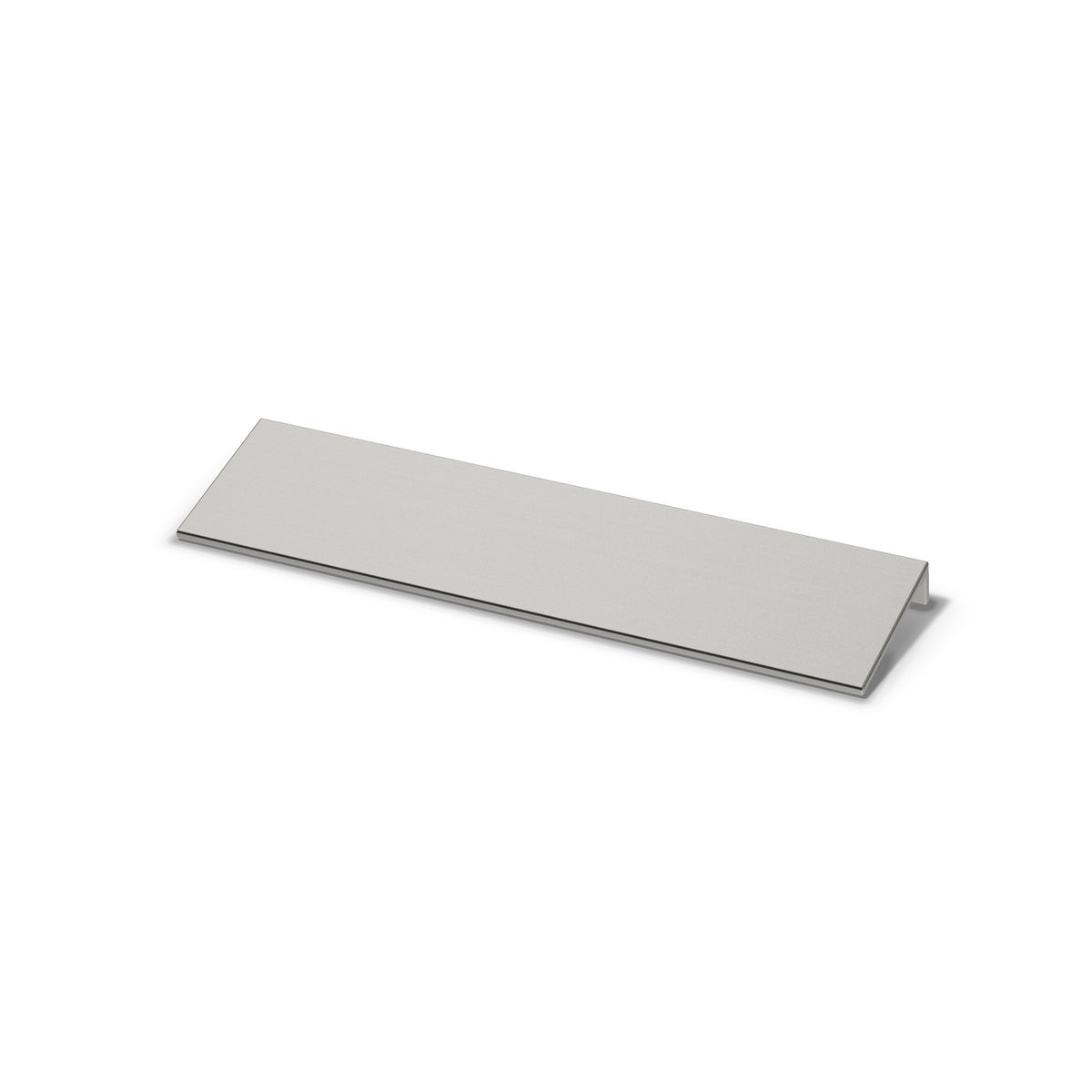

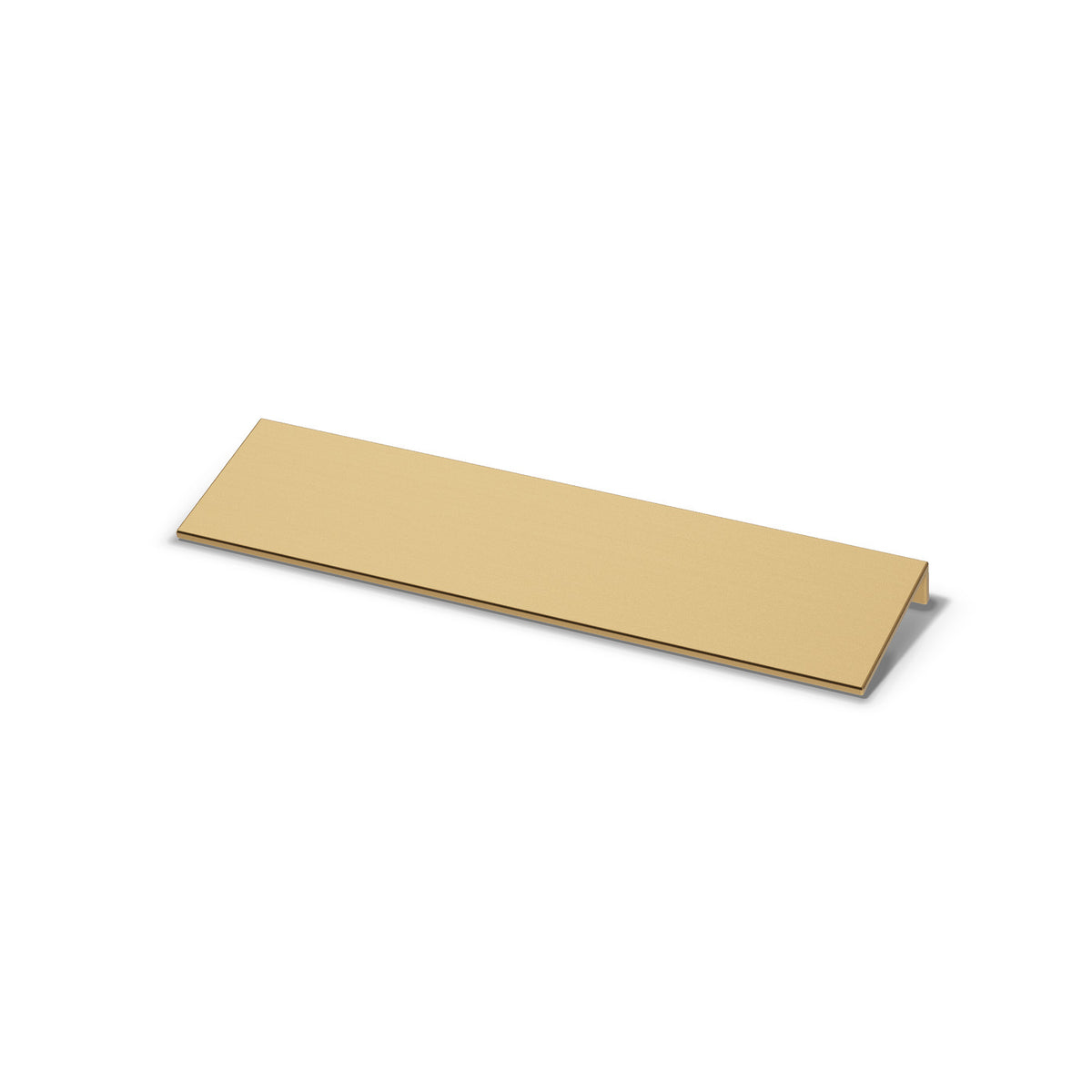

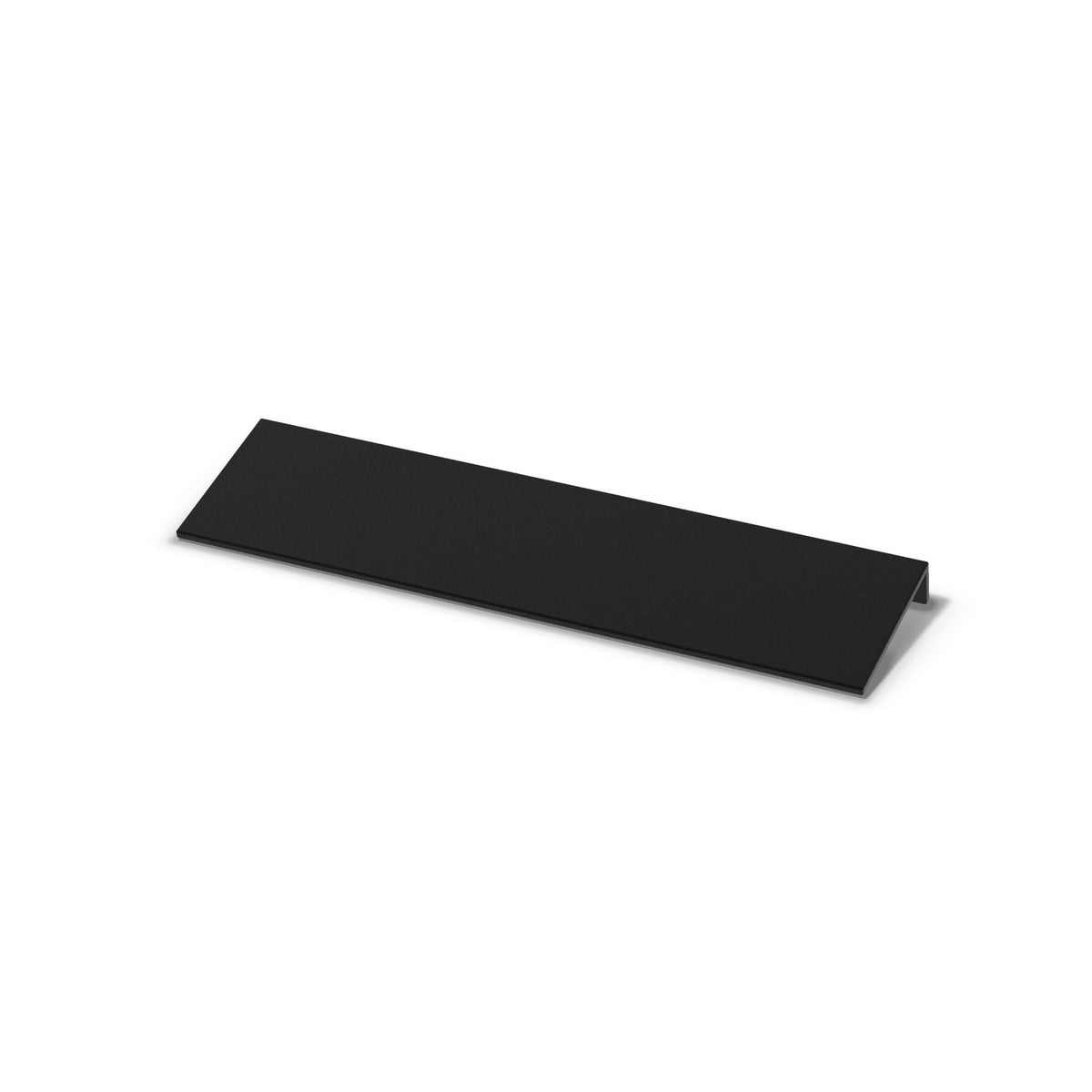

| 178mm (7.01 in) | 128mm (5.04 in) | 24.5 x 41.6mm (0.96 x 1.64 in) | Doors, small drawers |

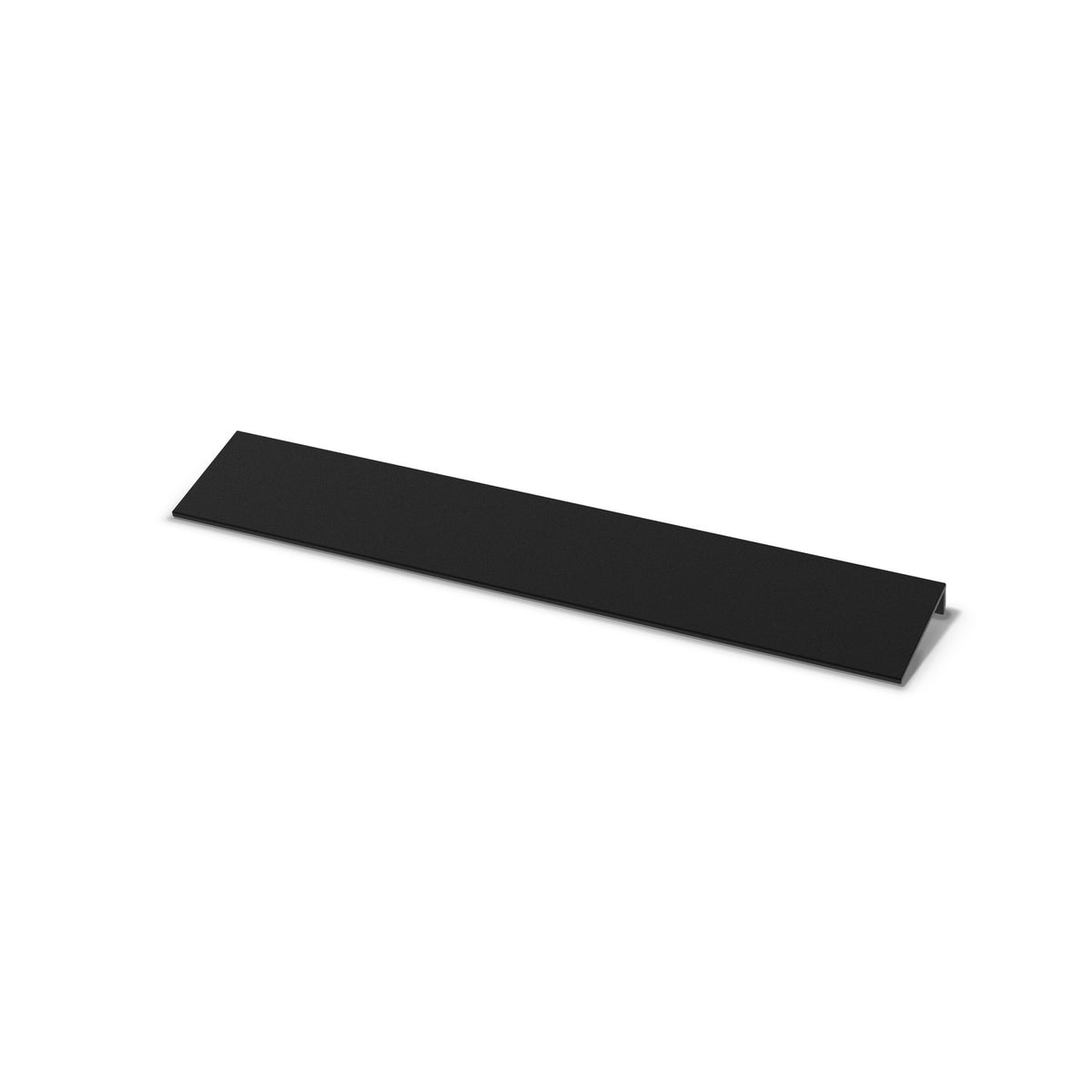

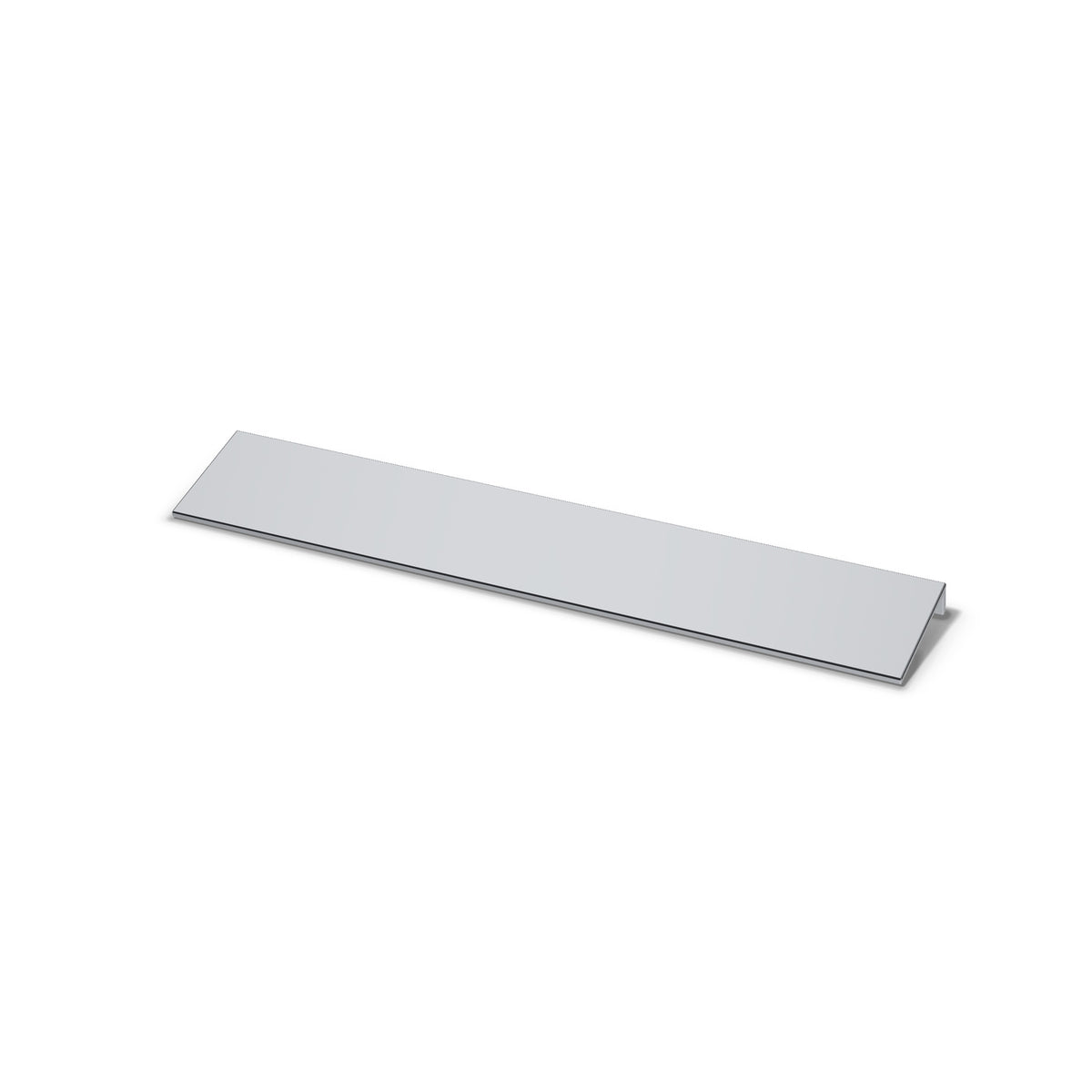

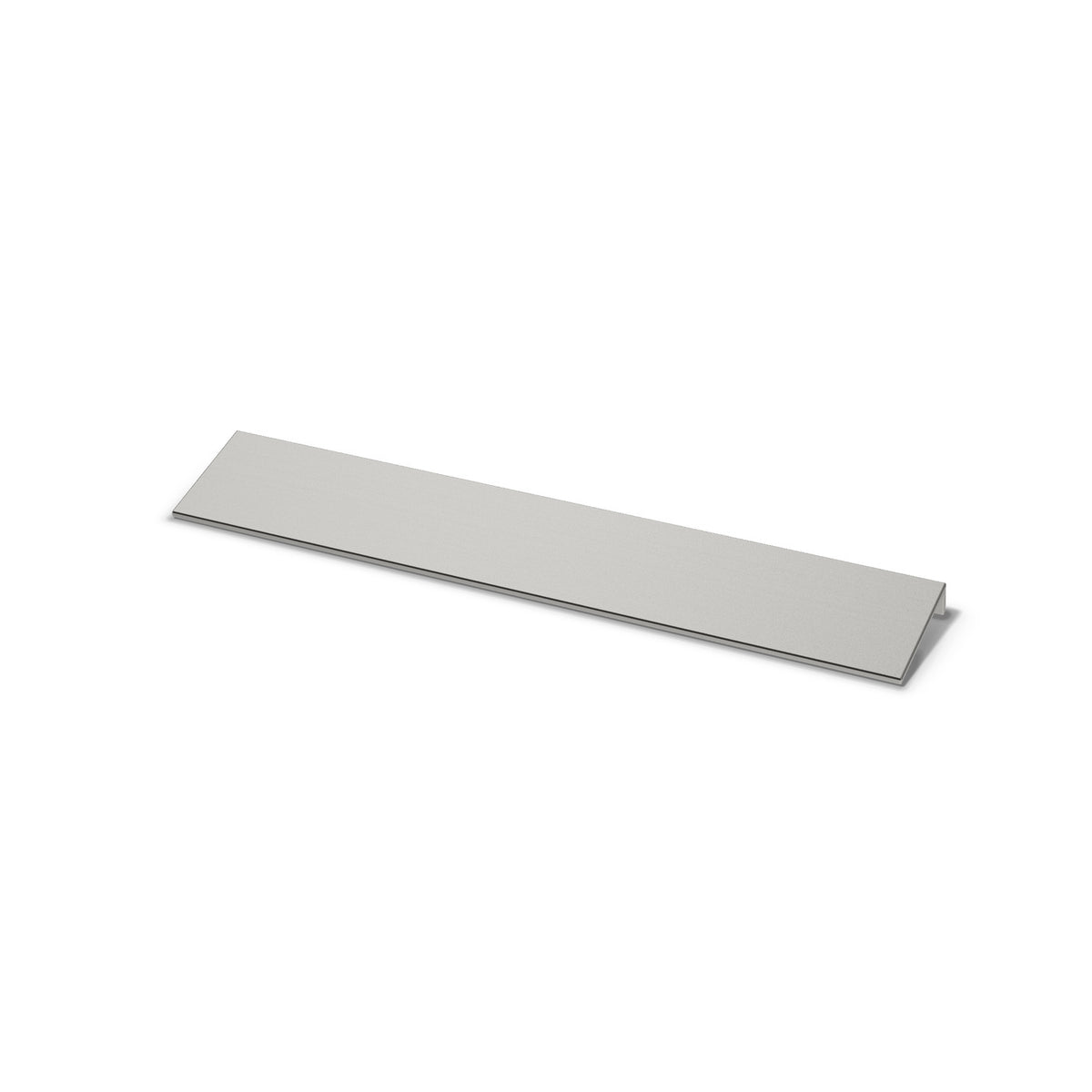

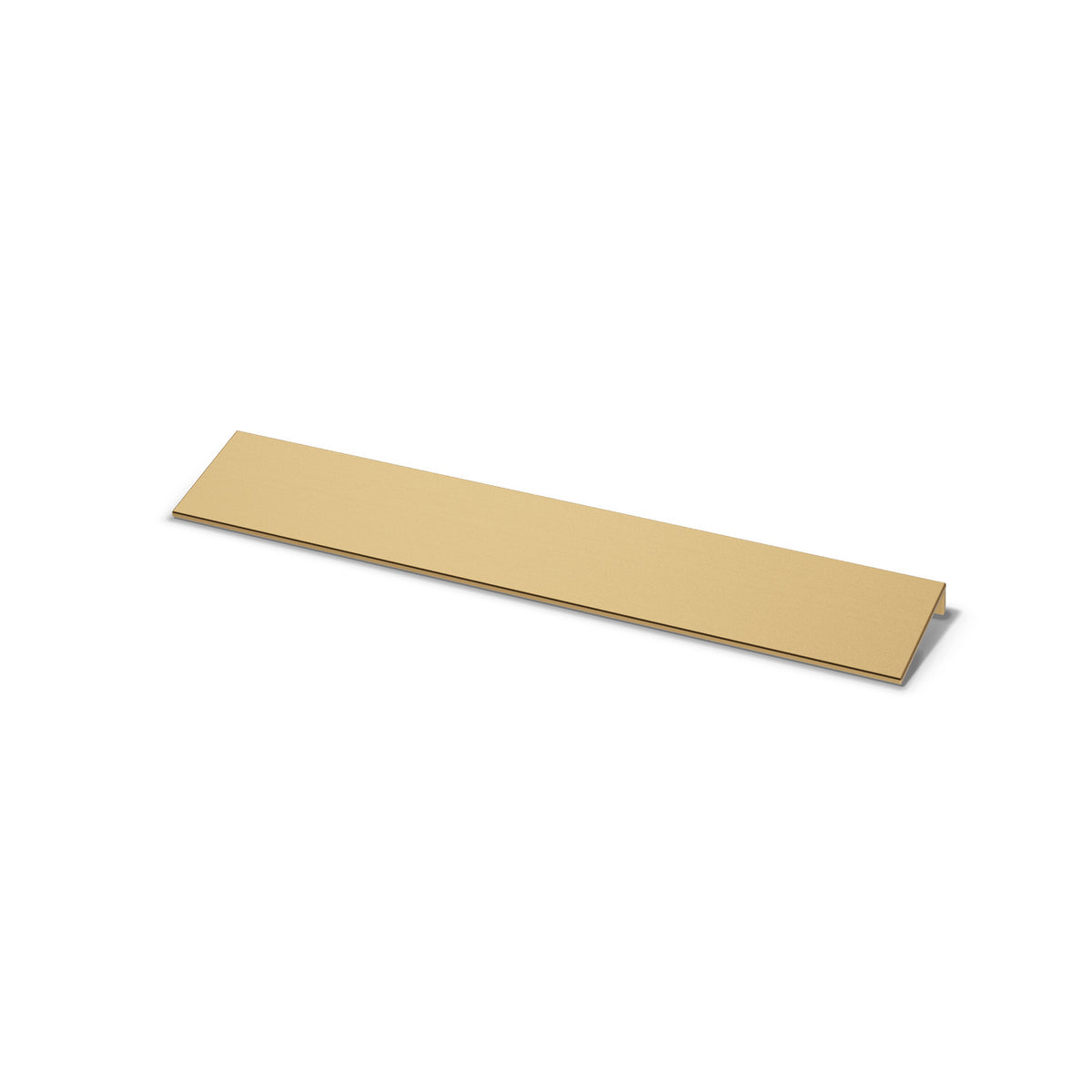

| 242mm (9.53 in) | 192mm (7.56 in) | 24.5 x 41.6mm (0.96 x 1.64 in) | Most drawers |

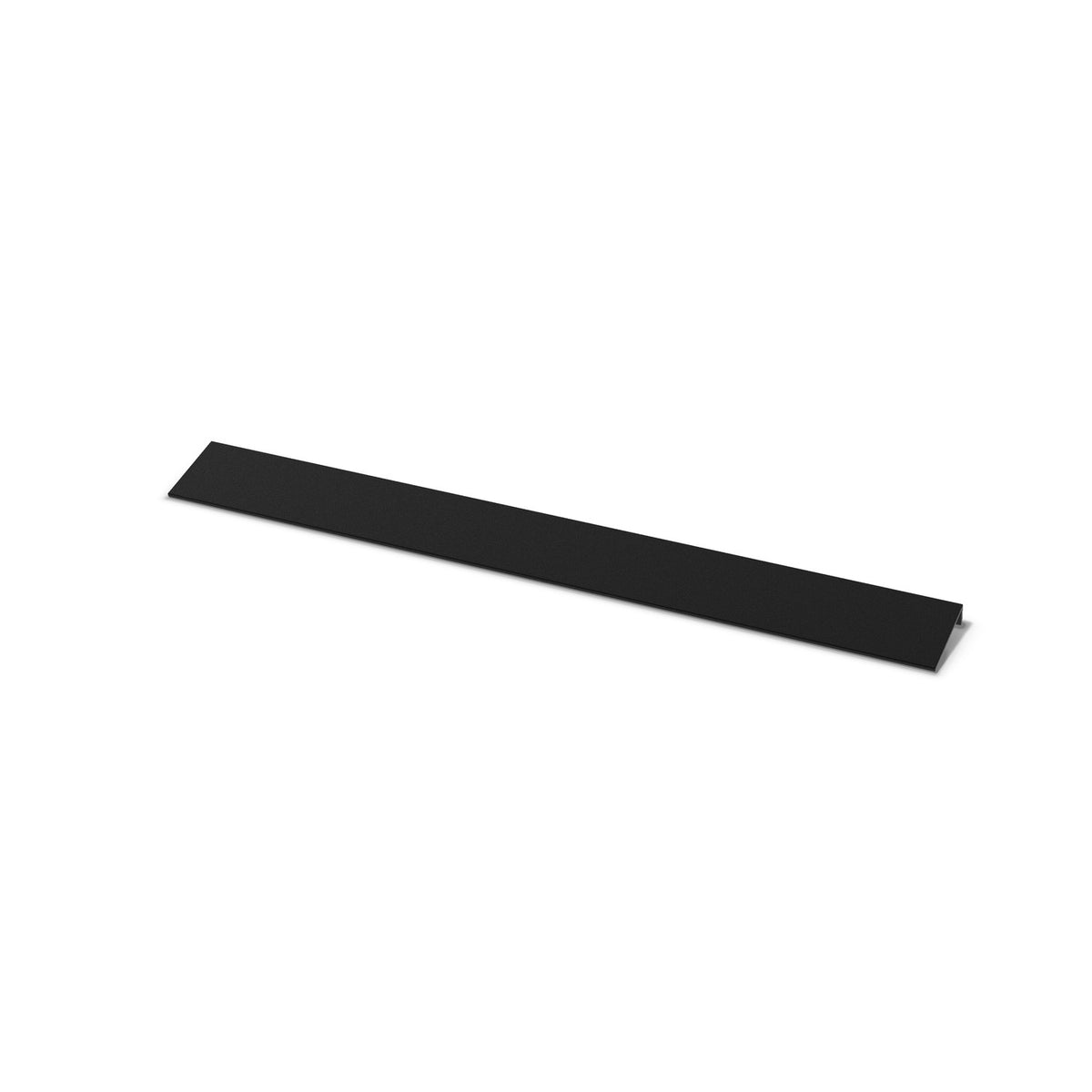

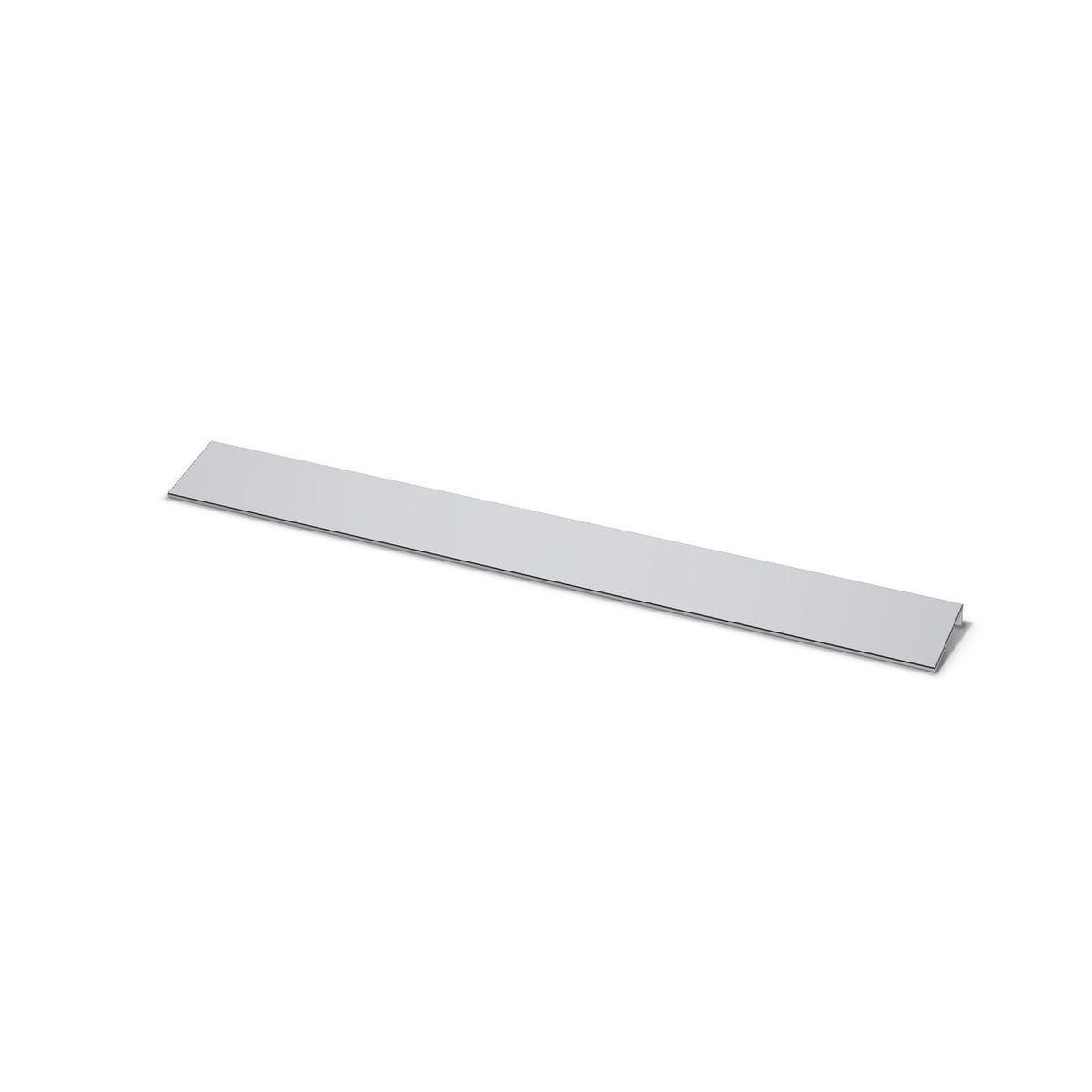

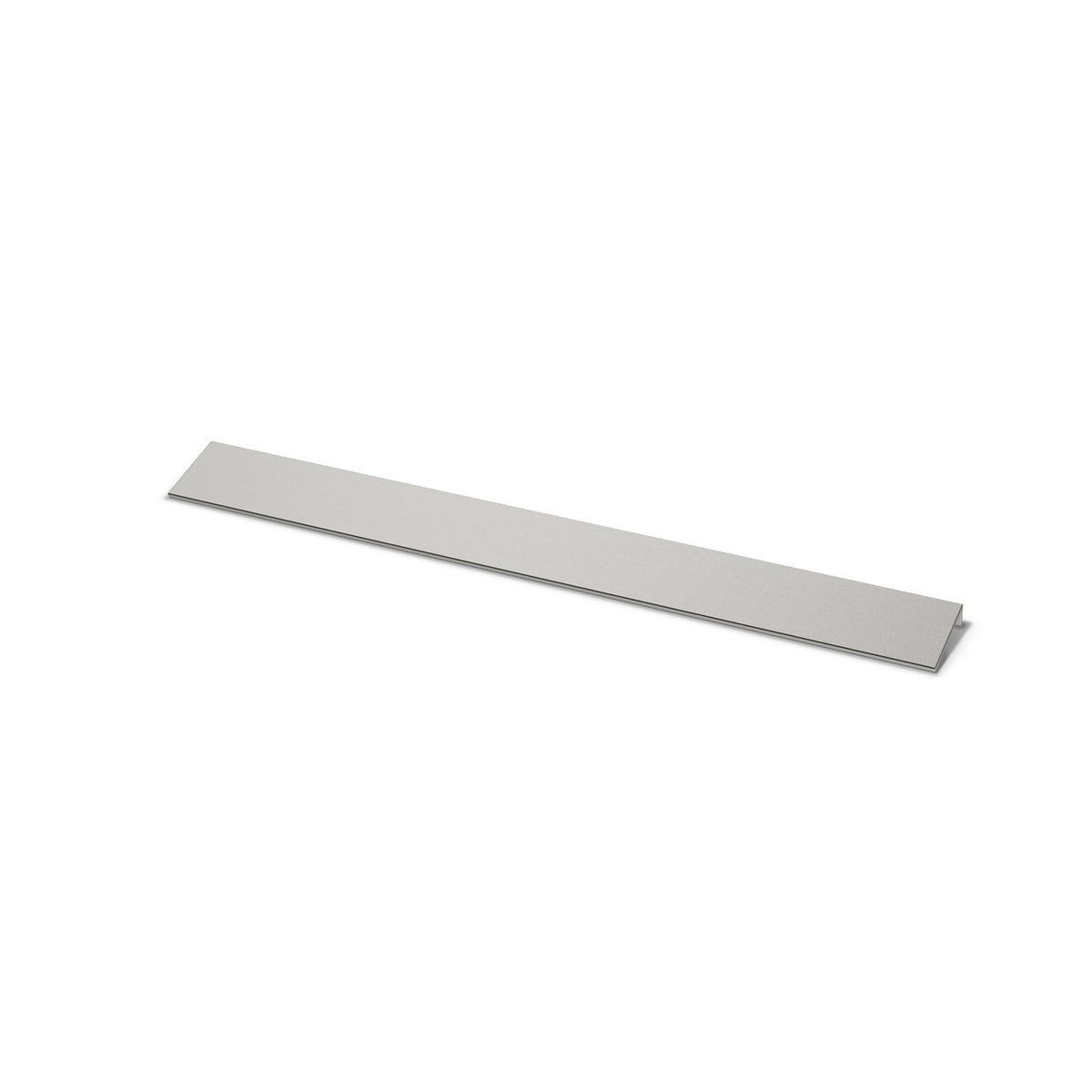

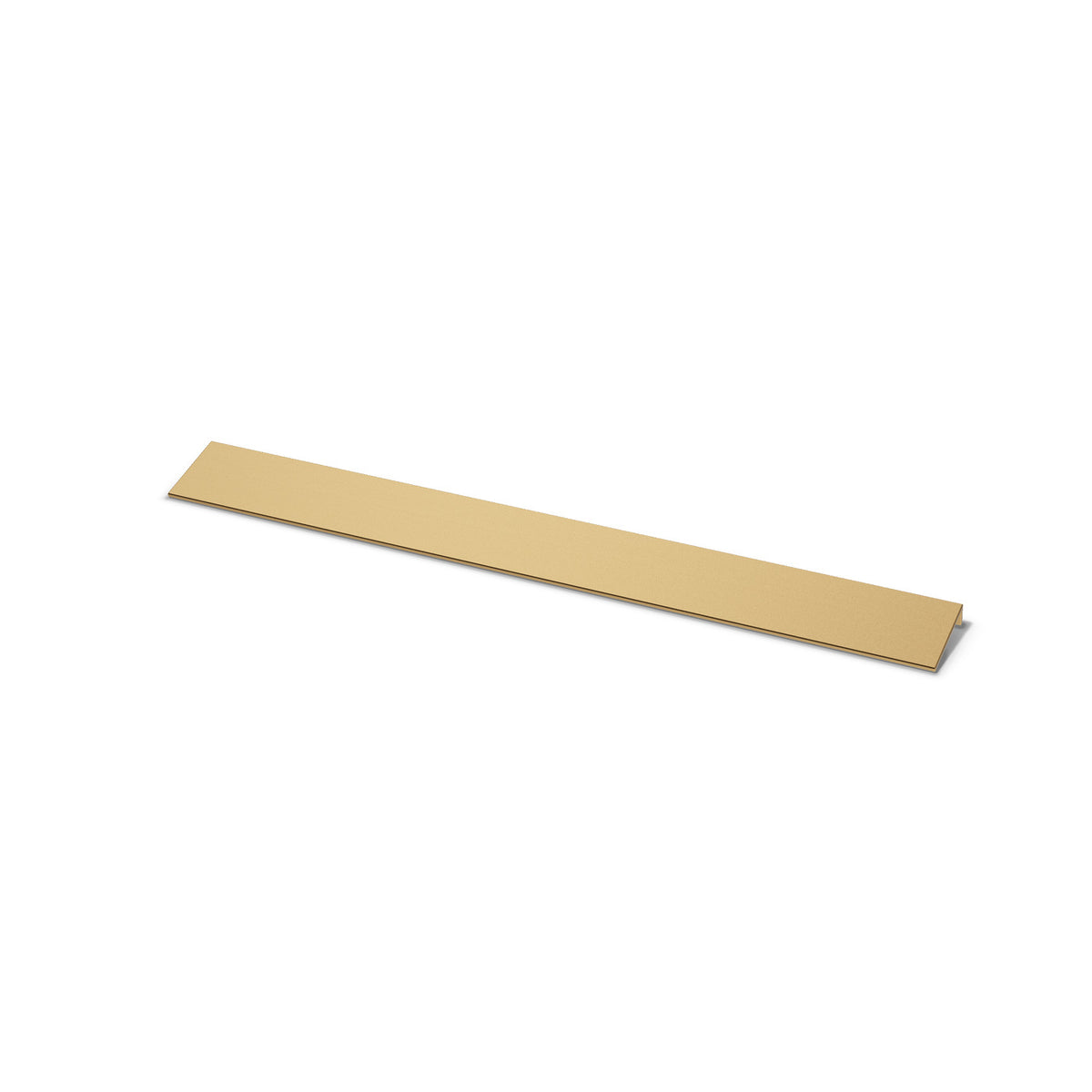

| 370mm (14.57 in) | 320mm (12.60 in) | 24.5 x 41.6mm (0.96 x 1.64 in) | Wide drawers, tall doors |

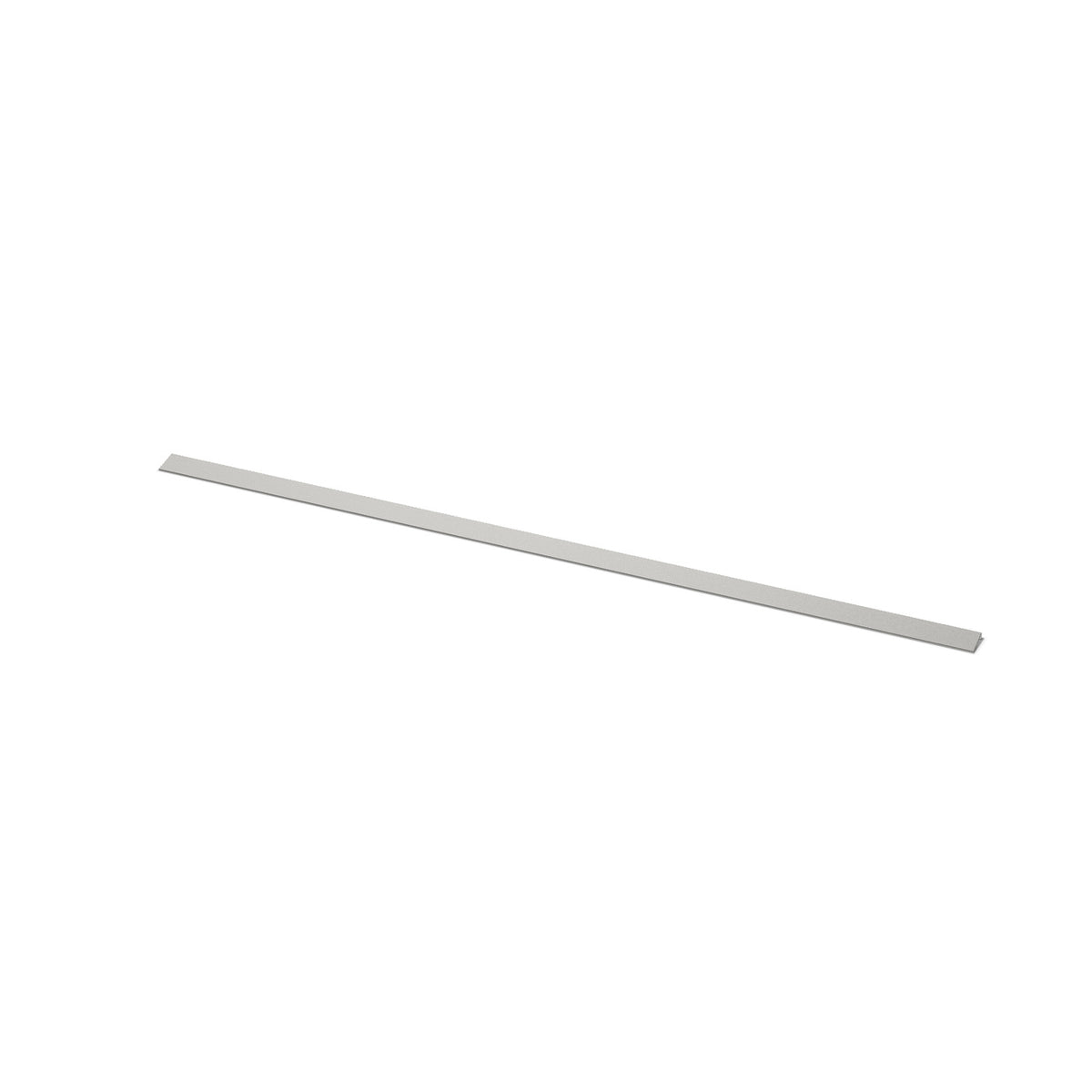

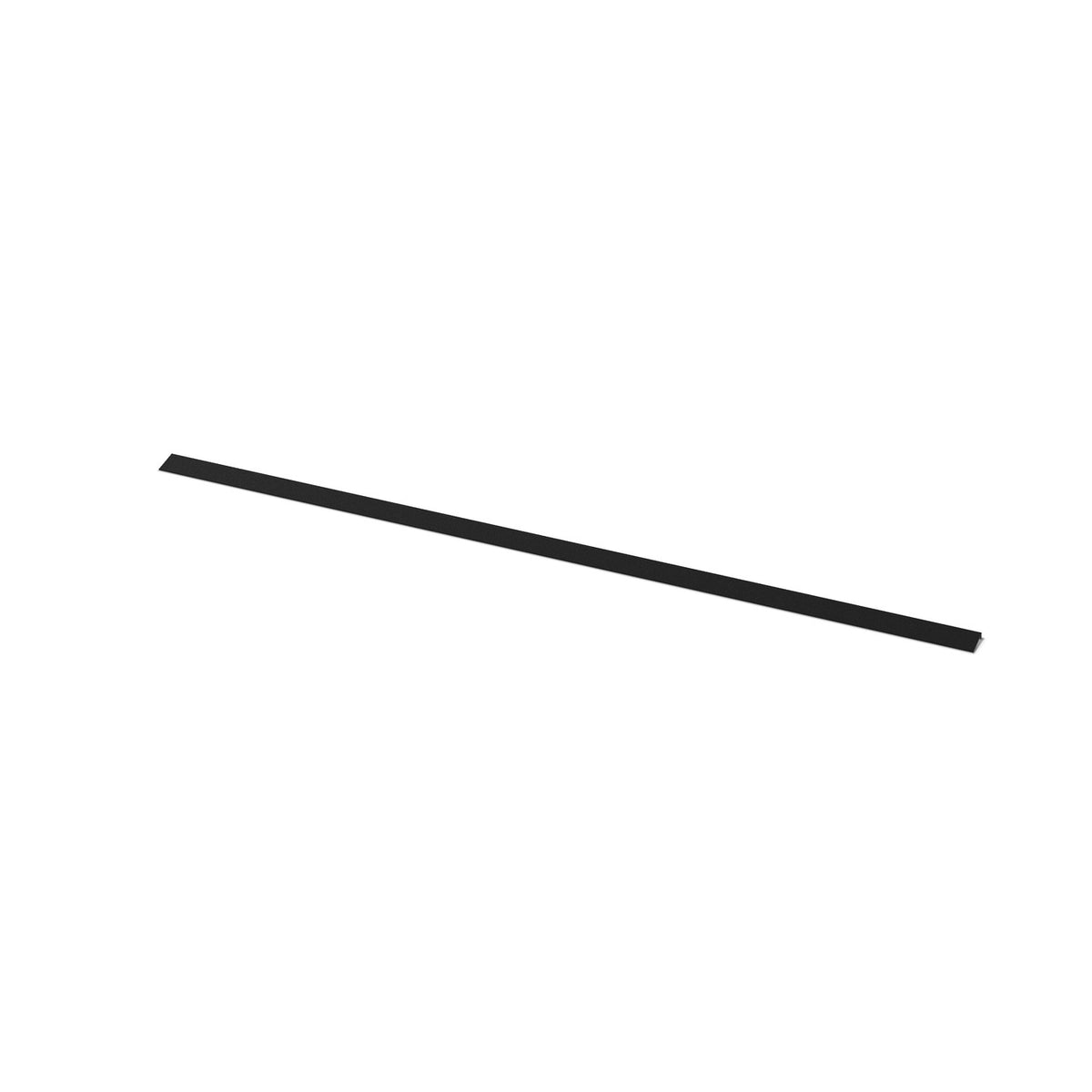

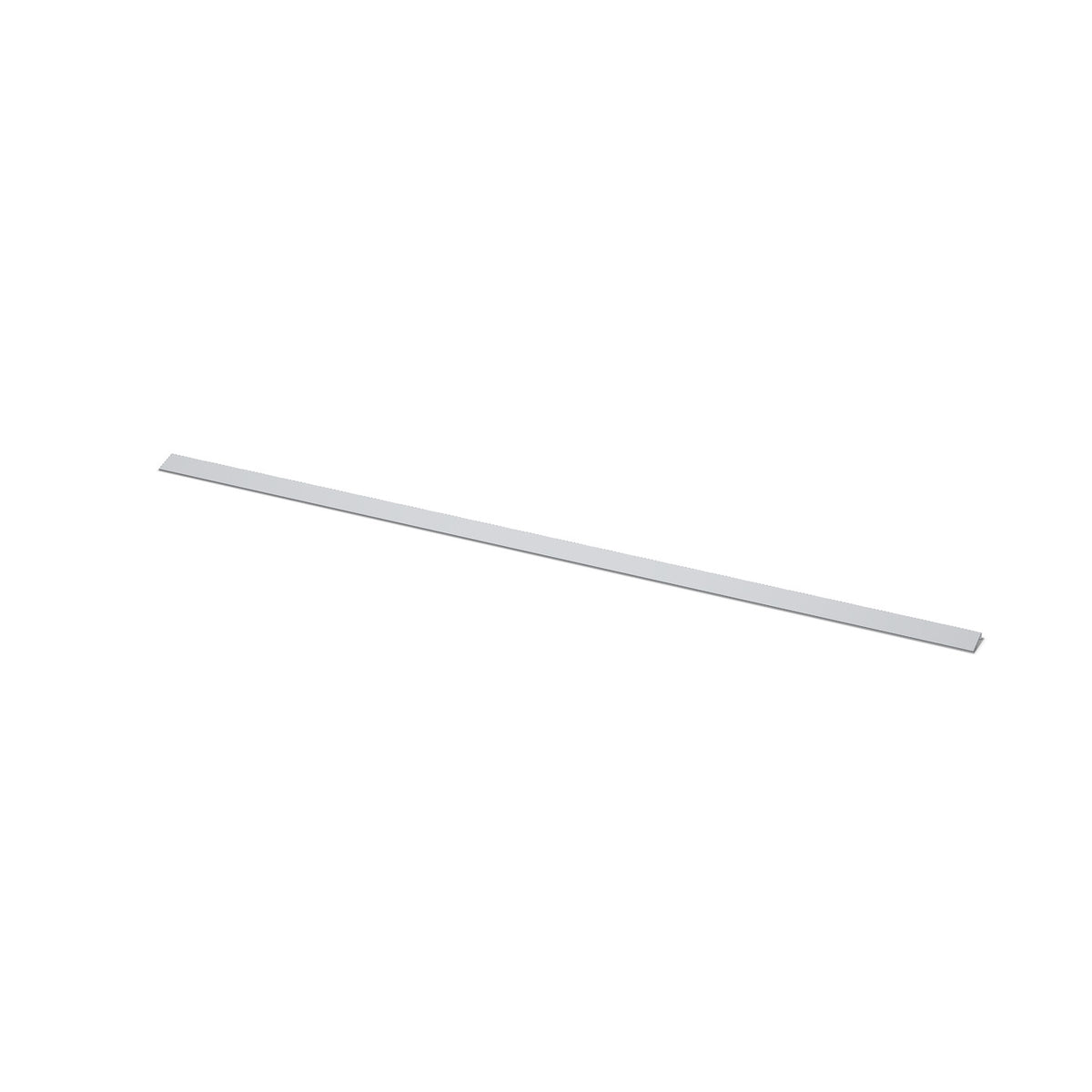

| 1220mm (48.03 in) | No fixed holes | 18 x 36mm (0.71 x 1.42 in) | Tall doors, pantries, long runs |
How it fits: the tall side screws to the back of the door or drawer front, the flat top runs over the edge, and the 6mm lip sits just past the front.
How the size works: the size is the overall length. On the four shorter sizes the screw holes sit 25mm in from each end, so the hole spacing is 50mm less than the length.
Details
- Aluminium profile, 2mm thick
- Screws not included. Use screws shorter than your door is thick.
- Finishes: brushed nickel, brushed brass, matte black, polished chrome
Sizes are metric. Inch figures are rounded to two decimals.
Pickup only, with your cabinets or on its own.
